Specificatii Tehnice:
-Culoare carcasa: Neagra
-Touch Technology & Capacity:
-5-Wire Resistive (AccuTouch®) - Single-Touch
-SAW ZB (IntelliTouch® Surface Acoustic Wave) - Single Touch
-Procesor: Intel Celeron 2 GHz (up to 2.42 GHz) Quad-Core J1900, 2MB L2 Cache
-Graphics: Intel HD Graphics
-BIOS:AMI
-Memorie(RAM): 4GB DDR3L SODIMM on 1 of 1 slot
-Capacitate de stocare: SSD 128GB 2.5” 7mm SATA III
-Diagonal ecranului: 15.6'' diagonal, Active matrix TFT LCD (LED)
-Factor de aspect: 16:9
-Suprafata Activa(mm):
-IntelliTouch: 13.6" x 7.6" / 344.2mm x 193.5mm
-AccuTouch: 13.7” x 7.8” / 348.2mm x 197.5mm
-Rezolutie: 1366 x 768 @ 60Hz
-Numarul culorilor: 262,000
-Luminozitate (typical)
-LCD panel: 220 nits
-IntelliTouch ZB: 198 nits
-AccuTouch: 176 nits
-Timpul deraspuns: 10 m sec
-Contrast:600:1
-Unghi de vizionare: orizontal: ±45° or 90° total / Vertical: 20°/45° or 65° total
-Porturi USB: 4 x USB 2.0
-Porturi Serial: 2 x Native DB9 RS-232 (standard)
-Port Ethernet: 1 x LAN RJ45 (Gigabit)
-Port Video suplimentar: port secund VGA
-Port Audio: 1 x 3.5mm line out, 1 x 3.5mm line in, 1 x 3.5mm mic in
-Sistem de operare:Fara sistem de operare (OS)
-Windows POSReady 7
-Windows 10
-Limba: Windows POSReady7 - 35 Limbi grupate
-Alimentare:Externa 19VDC universal-type power supply brick
-AC input voltage: 100-240 VAC
-Input frequency: 50-60 Hz
-Putere Maxima: 65W (Max Draw: 74W)
-Power Consumption (Typical): 29W
-Dimensiune maxima Touchcomputer cu Stand: 15.4" x 13.0" x 6.3" / 390mm x 330mm x 161mm
-Dimensiune maxima Touchcomputer fara Stand: 15.4" x 11.0" x 9.5" / 390mm x 280mm x 240mm
-Dimensiunea cutiei de livrare: 18.1" x 15.8" x 9.8" / 460mm x 400mm x 250mm
-Greutate (fara stand): 10.4lbs / 4.7kg
-Greutate cutie transport livrare (cu stand): 6.1lbs / 7.3kg
-Temperatura de operare:intre 0°C si 35°C / 32°F to 95°F
-Temperatura depozitare:intre -20°C si 60°C / -4°F to 140°F
-Umiditate:Operare: intre 20% si 80%
-Umiditate depozitare: intre 5% si 95%
-Regulatory approvals and declarations
-UL, cUL, FCC, TUV, CB, CE, CoC, VCCI, CCC, KC, BSMI, RCM, UKSERTCOMPUTER
-Baterie lithium-ion
-MTBF(Mean timpe between failures):30,000 hours demonstrated

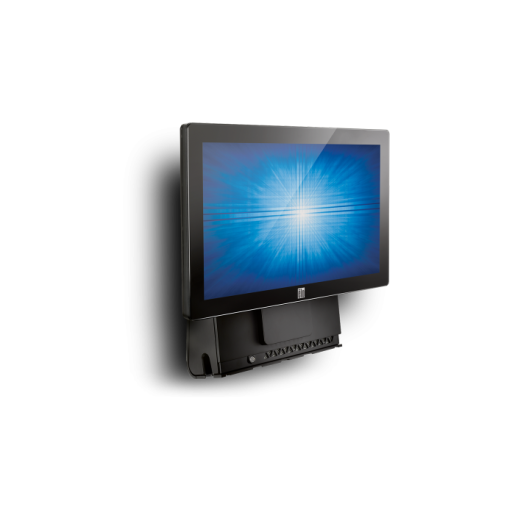

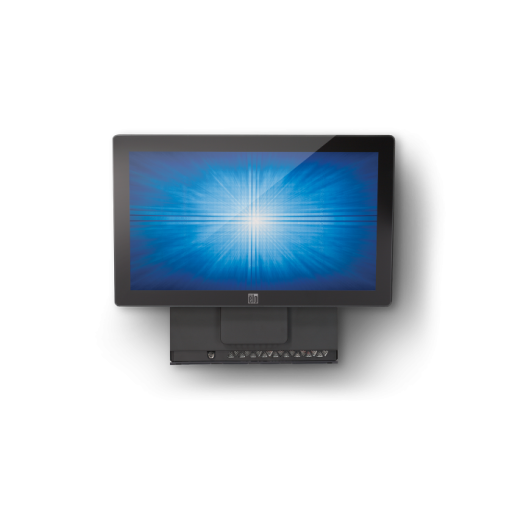

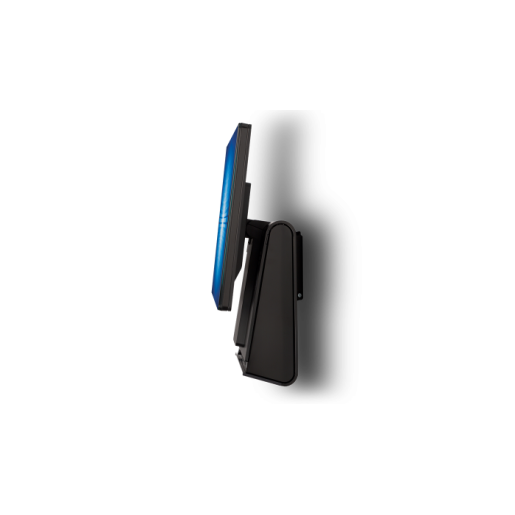

-Optiuni montare:montare pe perete sau suport pentru birou
-Garantie:3 Ani
-Optiuni de extinedere a garantiei:
-4 year warranty coverage - Elo P/N: E819598
-5 year warranty coverage - Elo P/N: E819795
-3 year warranty coverage + AUR - Elo P/N: E820186
-4 year warranty coverage + AUR - Elo P/N: E820388
-5 year warranty coverage + AUR - Elo P/N: E820582
-Sensibilitate:
-Touchscreen sealed to sub-bezel
-Touchscreen sealed to LCD
-Alte caracteristici:
-Gauri filetate pe partea inferioara a bazei pentru montare
-Suport detasabil
-Securitate Kensington-lock
-Ce se afla in cutie :E-Series Touchcomputer, Adaptor de retea - 90W; Cablu de alimentare retea, Ghid de instalare rapida
-Periferice optionale:
-Cititor de carduri magnetic(Magnetic Stripe Reader (MSR)) – Elo P/N: E122229
-Afisaj clienti(Customer Display (VFD)) – Elo P/N: E122426
-Ecran secundar clienti7" LCD Customer-facing Display – Elo P/N: E791658 (AccuTouch®)
-Cheie de securitate Dallas Key Kit – Elo P/N E055348
-Standuri, Suporturi & Kituri:

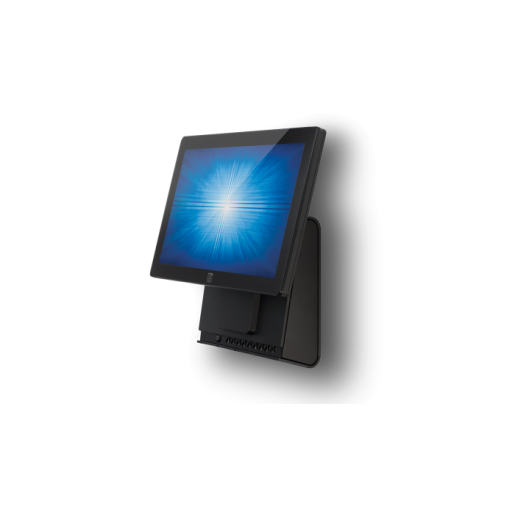

-Suport pentru perete(75mm or 100mm VESA) – Elo P/N: E143088
-Suport afisaj spate – Elo P/N: E122610
